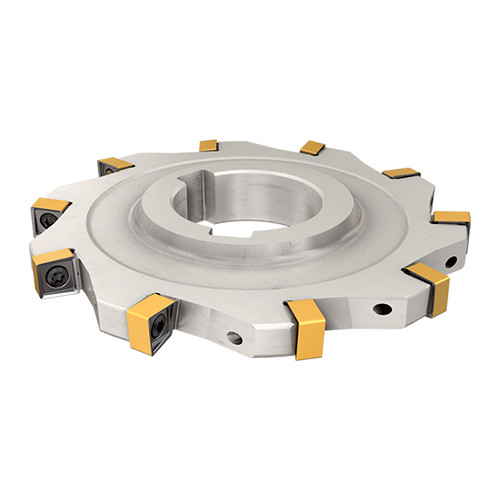

SDN D080-07-27-XN06
Full slot disk type slotting cutters carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges.

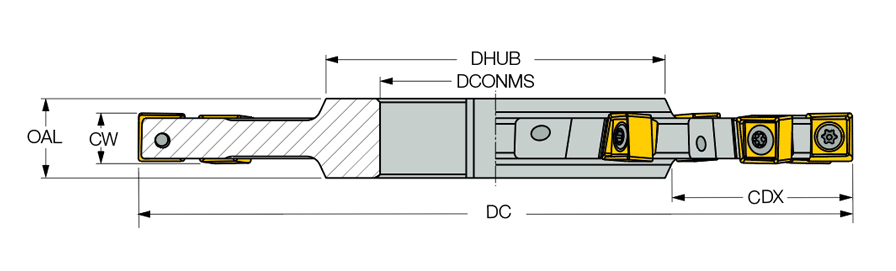

| Cutting Diameter (DC) | 80 mm | Overall Length (OAL) | 11 mm |
| Cutting Item Count (CICT) | 10 | Master Insert Identification (MIID) | XNMU 0603... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 19 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 38 mm | Body Material | Steel |
| Cutting Width (CW) | 7 mm | Unit | M |
Product Features
| Family Description | Full slot disk type slotting cutters carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges. | FamilyName | SDN-XN06 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4000
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
SDN-XN06
BrandName
Iscar
