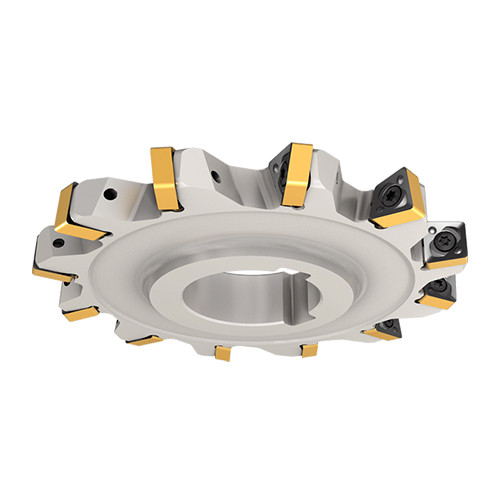

SDN D160-10-40-XN09
Full slot disk type slotting cutters carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges.

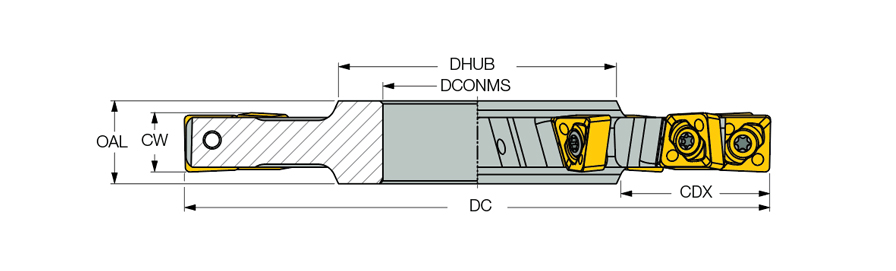

| Cutting Diameter (DC) | 160 mm | Overall Length (OAL) | 14 mm |
| Cutting Item Count (CICT) | 18 | Master Insert Identification (MIID) | XNMU 0904... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 18 | Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 51 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 55 mm | Body Material | Steel |
| Cutting Width (CW) | 10 mm | Unit | M |
Product Features
| Family Description | Full slot disk type slotting cutters carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges. | FamilyName | SDN-XN09 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.2610
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
SDN-XN09
BrandName
Iscar
